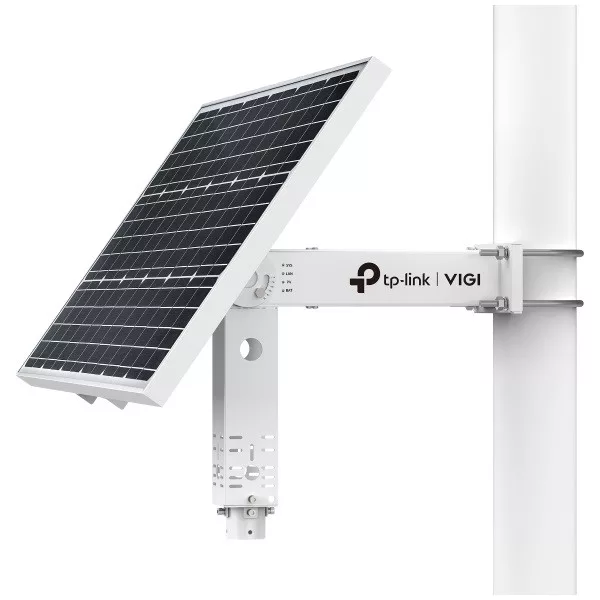

TP-Link Szolár Panel - SP9030 (90W panel; 31,2Ah akkumulátor; 3x DC port; IP66; 100x52cm)

Részletek



Solar Panel (Photovoltaic Panel)
Power	90 W
Voltage	18 V
Dimensions (L x W x H)	998×516×30 mm (39.3×20.3×1.2 in)
Battery
Type	Lithium
Intelligent Auxiliary Heat	Yes
Battery Capacity	31.2 Ah
Voltage	10.8 V
Max. Output Voltage	12.6 V
Life	More than 500 cycles
Dimension	242×70×65 mm (9.5×2.8×2.6 in)
Charging Condition	• 0°C~45°C
	• -30°C~45°C (With intelligent auxiliary heating)
Discharging Condition	• -20°C~60°C
	• -30°C~60°C (With intelligent auxiliary heating)
Angle Adjustment (Manual)
Range	5°/15°/25°/35°/45°/55°
HARDWARE
Interface	• 1× 10/100 Mbps RJ45
	• 1× Photovoltaic Panel Connector
	• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LED	• Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
	• Color: Blue
Szoftver jellemzők
Load Control	Yes
High and Low Temperature Protection	Yes
Overdischarge Protection	Yes
Power Consumption Statistics	Yes
Displays Real-time Load Status	Yes
Battery Level Display	Yes
Time Zone Selection	Yes
Region Selection	Yes
Schedule Saving	Yes
Firmware Remote Update	Yes
Remote Reboot	Yes
Local LAN Management	Yes
Smart Charging Control	-30°C~5°C
Account Management	Yes
Remote Reset	Yes
Remote Message Push	Yes
Egyéb jellemzők
Tanúsítványok	• CB, PSE (Battery)
	• CE, FCC, VCCI, IC, IP66
Csomagolás tartalma	• VIGI SP9030
	• Quick Start Guide
	• Waterproof Cable Attachments
	• Mounting Accessories
Doboz mérete (Sz X Mé X Ma)	1110×615×225 mm (43.7×24.2×8.9 in)
Súly	• Product Weight: 15 kg
	• Package Weight: 17.5 kg
Környezet	• Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
	• Operating Humidity: 10%~90%RH, Non-condensing

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

VIGI SP9030

Garancia:

36 hónap

EAN:

4895252504897

EAN:

4895252504897

Garancia (hónap):

36

Termék gyártója:

TP-LINK

Tömeg:

17,5 kg/db
