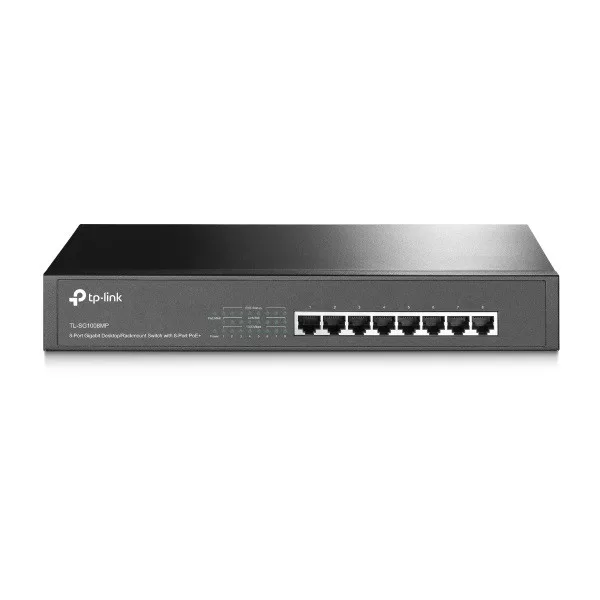

TP-Link Switch PoE - TL-SG1008MP (8port 1Gbps; 8 af/at PoE port; 126W)

HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
PoE+ Ports(RJ45) Standard: 802.3at/af (30W)
PoE+ Ports: 8 Ports
Total PoE Budget: 126W
Backbound Bandwidth 16Gbps
Mac Address Table 4K
Buffer Size 1.5Mbits
Dimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in.
(294 × 180 × 44 mm)
Mounting 13" and 19" 1U rack mountable
Max Power Consumption 9.9W(no PD load)
144.4W(with 124W PD load)
Max Heat Dissipation 33.7BTU/h(no PD load)
492.6BTU/h(with 124W PD load)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transfer Method Store-And-Forward
OTHERS
Certification FCC, RoHS
Package Contents TL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption 9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
