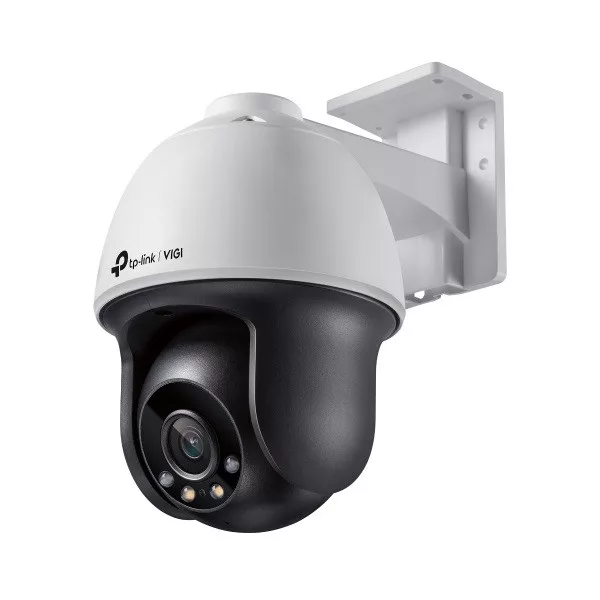

TP-Link IP PT kamera - C540 (FullColor, 4MP, 4mm, H265+, fehér LED30m, IR30m, IP66; PoE/12VDC; SD; audio)

42 900 Ft

TP-Link IP PT kamera - C540 (FullColor, 4MP, 4mm, H265+, fehér LED30m, IR30m, IP66; PoE/12VDC; SD; audio)

Name: TP-Link IP PT kamera - C540 (FullColor, 4MP, 4mm, H265+, fehér LED30m, IR30m, IP66; PoE/12VDC; SD; audio)
Brand: TP-LINK
SKU: C-BIZVIGIC5404
Price: 42900 HUF
Availability: InStock

Raktáron 5 db

42 900 Ft

Központi raktár

Raktáron

1-2 munkanapon szállítjuk

Üzletben átvehető

Nincs raktáron

Üzletünkben nyitvatartási időben átvehető.

TP-Link IP PT kamera - C540 (FullColor, 4MP, 4mm, H265+, fehér LED30m, IR30m, IP66; PoE/12VDC; SD; audio)

Rendelésed futárszolgálattal házhoz, vagy automatába szállítás már 1190 Ft-tól!

Részletek

Kamera
Képérzékelő	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	4 mm: F1.6
Optika	Fixed focal lens (2.8 mm / 4 mm / 6 mm)
Lens Mount	M12
Min. szükséges megvilágítás	0 lux with IR/white Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP66
IR Working Distance	30m
Forgatási/döntési szög	Pan: 0° to 350°, Tilt: 0° to 120°
Illumination Distance	30 m
Látószög	(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Digitális nagyítás	Yes
LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	4mm:
FOV	Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens Mount	M12
DORI Distance	4 mm:
	Detect: 80 m (262 ft)
	Observe: 33 m (109 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
PTZ
Pan/tilt Range	Pan: 0° to 350°, Tilt: 0° to 120°
Pan/tilt Speed	Pan Speed:
	Configurable from 1° to 55°/s; Preset Speed: 55°/s

	Tilt Speed:
	Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control Speed	Configurable from 8° to 35°/s
Presets	300
Patrol Scan	8 patrols, up to 8 presets for each patrol
Power-off Memory	Yes;
Power-off Memory	Auto restore to previous PTZ and lens status after power failure
Park Action	Yes;
Park Action	Preset; Patrol Scan
3D Positioning	Yes
Angle Adjustment (Manual)
Range	Pan: 0° to 348°
Range	Tilt: 0° to 120°
ILLUMINATOR
IR LED	Quantity: 2
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 2
White LED	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2560 X 1440
Main Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

	Resolution:
	2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

	Resolution:
	640x480, 352x288, 320x240
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
Video Compression	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
Video Bit Rate	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	? 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
Hang
Hangkommunikáció	Two-Way Audio
Hangbemenet	Yes
Hangkimenet	Yes
Hangtömörítés	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
Hálózat
Szabvány	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Web Browser	Google Chrome® 57 and above
	Firefox® 52 and above
	Safari® 11 and above
	Microsoft® Edge 91 and above
Cloud	Yes
Biztonság	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Figyelmeztetési és eseménykezelési vezérlés
Smart Event	Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
Fizikai kezelőfelület
Hálózati csatlakozás	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Gomb	Reset Button
Slot	Micro SD card
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
Általános
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Csomagolás tartalma	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Méret (Ma x Sz x Mé)	120 × 172 × 198 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.62 Kg
Gross Weight	0.98 Kg
Power Consumption	12V DC: Max 14W
Power Consumption	PoE: Class 4
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
Power Supply	PoE (802.3af/at, class 4)
Protection	IP66
Product Dimensions (L x W x H)	120 × 172 × 198 mm
Certifications	CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Videó/Kép
Videó tömörítés	Main stream: H.265+/H.265/H.264+//H.264
Videó tömörítés	Sub-Stream: H.265/H.264
Kép frissítés (frame) és felbontás	Main Stream
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

	Sub-Stream
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 640x480, 352x288, 320x240
Videótovábbítás	Main Stream
Videótovábbítás	Sub-Stream
Képbeállítás	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
Video Bit Rate	Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event	Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

VIGI C540(4MM)

Garancia:

36 hónap

EAN:

4897098683781

EAN:

4897098683781

Felbontás:

4MP

Kialakítás:

PT / PTZ

Garancia (hónap):

Termék gyártója:

TP-LINK

Lencse:

ONVIF:

Van

Segéd fény:

Hibrid

Elhelyezés:

Kültéri

Burkolat:

Műanyag

AI felismerés:

Van

Tápellátás:

DC / PoE

Segéd fény távolság:

Hang:

Beépített Mikrofon és hangszóró

Fényerő kompenzálás:

DWDR

SD kártya támogatás:

Van

Max. IR távolság:

Tömeg:

520 g/db
