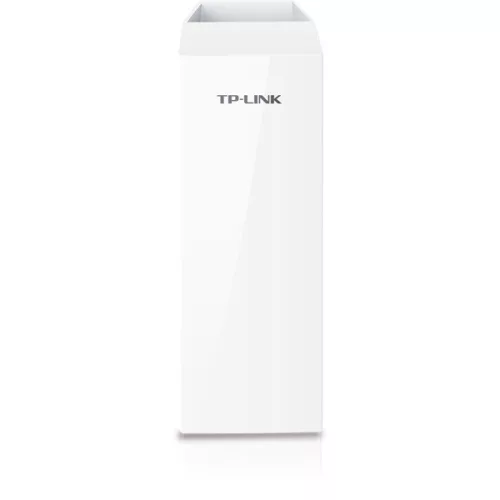

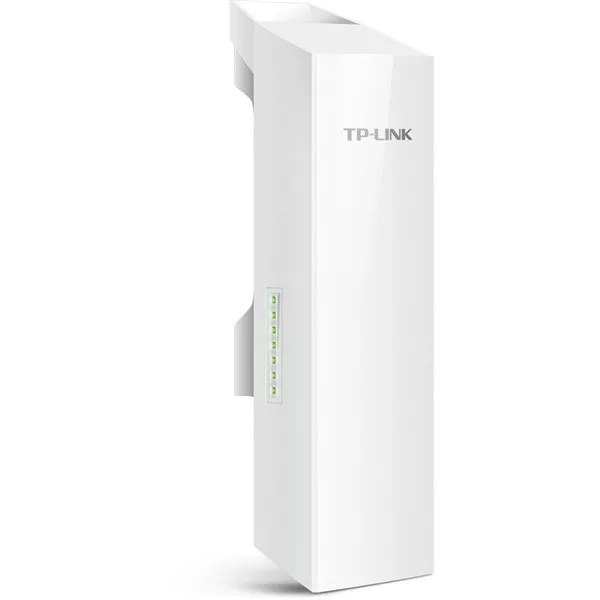

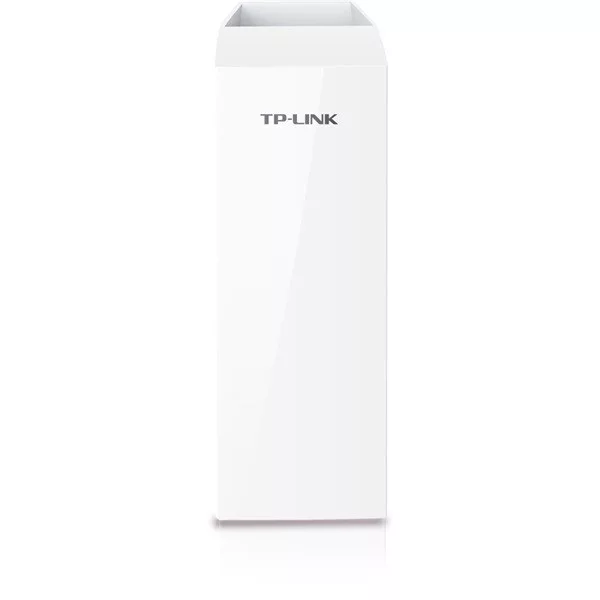

TP-Link Access Point WiFi N Kültéri - Pharos CPE510 (300Mbps, 5Ghz; 100Mbps, 24V PoE; irányíth. 13dBi ant; 5km)

Kültéri!

HARDWARE FEATURES
Processor Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
Dimensions ( W x D x H ) 224 x 79 x 60 mm
Antenna Type Built-in 13dBi 2×2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection 15KV ESD Protection
6000V Lightning Protection
Power Consumption 13 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Enclosure Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Reception Sensitivity • 802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
• 802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Transmission Power 27dBm/500mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
Wireless Configurations Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
OTHERS
Certification CE, FCC, RoHS, IPX5
Package Contents Outdoor Wireless CPE
24V 1A Passive PoE Adapter

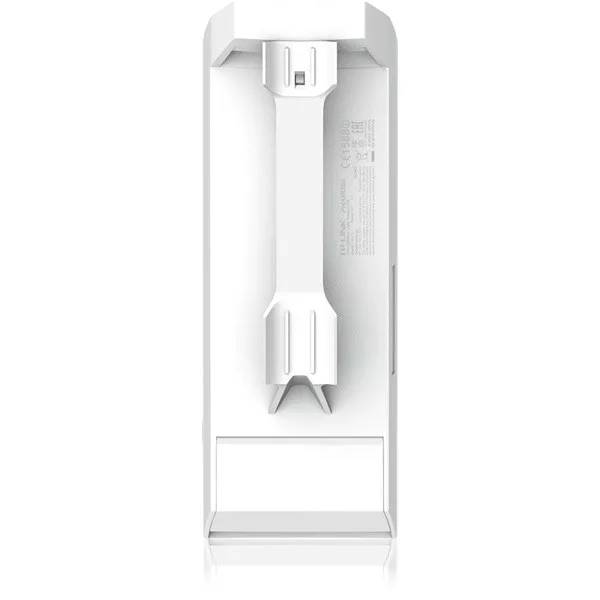

Pole Mounting Straps
AC Power Cord
Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment Operating Temperature: -30°C~70°C (-22?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
POE ADAPTER FEATURES
Button Remote Reset Button
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Dimensions(W x D x H) 110*57*33.5mm
Efficiency >80%
Input 100-240VAC, 50/60Hz
Input Current 0.8A Max @ 100VAC
Input Voltage 100VA~240VAC @ 50Hz~60Hz
Interfaces 1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
Output 24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Output Voltage 24VDC(+4,5pins; -7,8pins)
Power Status LEDs 0~0.8A: Green
0.8A~1.0A: Red
