Standards and Certifications

• FCC
• CE
• RoHS

  General
• Supports character editing and ISP function
• Light source: 632 nm red LED
• Scanner width: 6 cm
• Scanner range: contact to 6 cm @ 20 mil / 0.5 mm, PCS 90%, Code39
• Resolution: 0.127 mm (5 mil) @ PCS 90%
• Reading indicator: tone
• Ambient light: 5,000 lux maximum (sunlight)
• Scan rate: 100 scans/second +/- 10%
• Interface: KBW / RS232 / USB (HID or Virtual Comport)
• Switch: trigger

  Code Support
• UPC/EAN/JAN, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 93, Interleave 25, Codabar/NW7, MSI/PLESSEY, China Postage, GS1 DataBar (RSS code)

  Physical
• Dimensions: 18 x 8 x 6.35 cm (7 x 3 x 2.5 in.)
• Weight w/o cable: 0.12 kg (4.23 oz.)
• Cable length: 152.4 cm (5 ft.)
• Operating temperature: 0 – 50°C (32 - 122°F)
• Storage temperature: -20 – 70°C ( -4 – 158°F)
• Relative humidity: 20 – 95% (non-condensing)
• Housing: ABS

  Electrical
• Voltage: DC +5 V +/- 5%
• Power consumption: 80 mA

  Package Contents

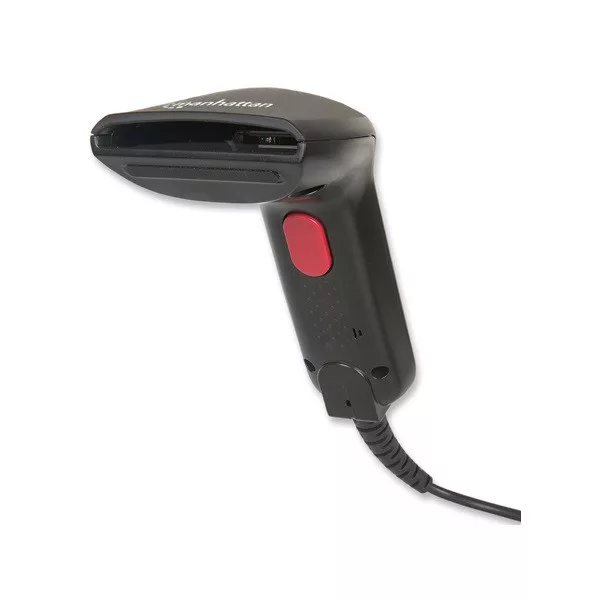

• Contact CCD Handheld Barcode Scanner
• User manual
