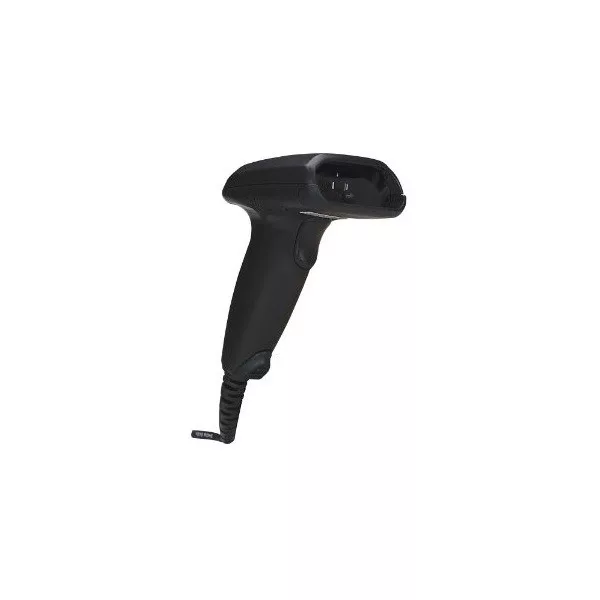

Long Range CCD Barcode Scanner

260 mm Scan Depth, USB

Model Number: 177672



Standards and Certifications:

FCC

CE

USB

General:

Supports character editing and ISP function

Light source: red LED

Scanner width: 60 mm

Width of field: 100 mm

View angle: 35°

Scanner range: 260 mm @ 20 mil/0.5 mm, PCS 90%

Resolution: 0.127 mm (5 mil) @ PCS 0.9

Reading indicator: tone and LED

Ambient light: 10,000 lux maximum

Scan rate: 150 scans/second

Interface: USB

Switch: button

Code support:

UPC/EAN/JAN & Addon 2/5, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 93, Interleave 25, Industrial 25, Codabar/MW7, MSI/PLESSEY, China Postage, Code2 of 6, LCD25, Telepen, GS1 DataBar (RSS code)

Physical:

Dimensions: 14 x 7 x 9 cm (5.5 x 2.75 x 5.5 in.)

Weight: 115 g (4 oz.)

Cable length: 1.5 m (5 ft.)

Operating temperature: 0 – 50°C

Storage temperature: -20 – 70°C

Relative humidity: 20 ± 95% (non-condensing)

Housing: ABS and rubber

Electrical:

Voltage: DC +5 V ± 5%

Power consumption: 140 mA

Package Contents:

Long Range CCD Handheld Barcode Scanner

User manual
