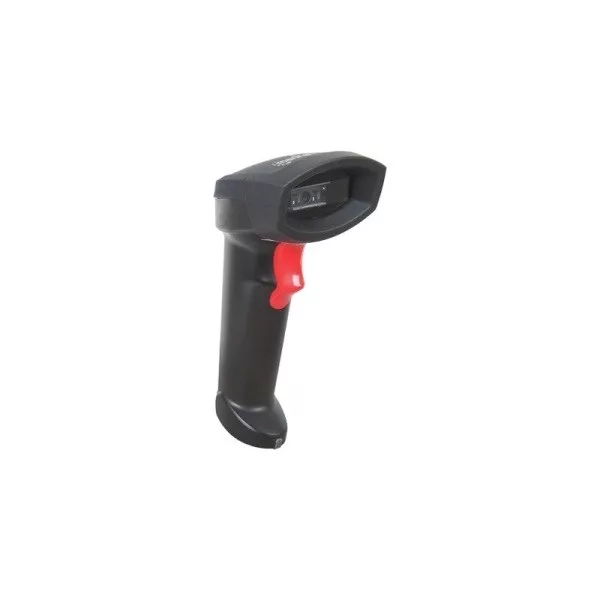

Wireless Linear CCD Barcode Scanner

Bluetooth, 50 cm Scan Depth, Rugged Housing

Model Number: 178617

Standards and Certifications:

FCC

CE

RoHS

General:

Light source: 632nm, visible red LED

Scanner range: 500 mm

Resolution: 0.1 mm (4 mil) @ PCS 0.9

Reading indicator: tone and LED

Ambient light: 100,000 lux maximum (sunlight)

Scan rate: Smart detection, up to 500 scans/second

Interface: wireless Bluetooth v2.1 to base; base to PC, KBW / RS232 / USB (HID or Virtual Comport)

Switch: trigger

Wireless:

Bluetooth: V2.1, Class I

HID and SPP profiles

Range: 80 m (264 ft.) in line of sight

Code support:

UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code 32/ Italian Pharmacy, Code 128, Codabar/MW7, Interleave 25, Industrial 25, Matrix25, MSI/PLESSEY, Telepan, Code 93, Code 11, China Postage, Code26, LCD25, GS1 DataBar (RSS code)

Physical:

Dimensions, scanner: 18 x 7 x 7 cm (7 x 2.76 x 2.76 in.); base, 13 x 11 x 8 cm (5 x 4.5 x 3 in.)

Weight: scanner 0.21 kg (0.46 lbs.), cradle 0.15 kg (0.33 lbs.)

Operating temperature: 0 – 50°C (32 – 122°F)

Storage temperature: -20 – 60°C (-4 – 158°F)

Relative humidity: 20 – 95% (non-condensing)

Housing: ABS and rubber

Sealing: IP42

Electrical (Scanner):

Supply voltage: lithium-ion 3.7V

Battery type: Li-ion battery 2600 mAh

Reads per charge: 50,000 continuous reads

Recharge time: 5 hours

Current draw: 200 mA

Electrical (Receiver):

Supply voltage: DC +5 V +/- 5%

Current draw: 70 mA

Package contents:

Long Range Linear CCD Wireless Bluetooth Barcode Scanner

Receiver/recharge base

Power and RJ50 to USB cables

User manual
