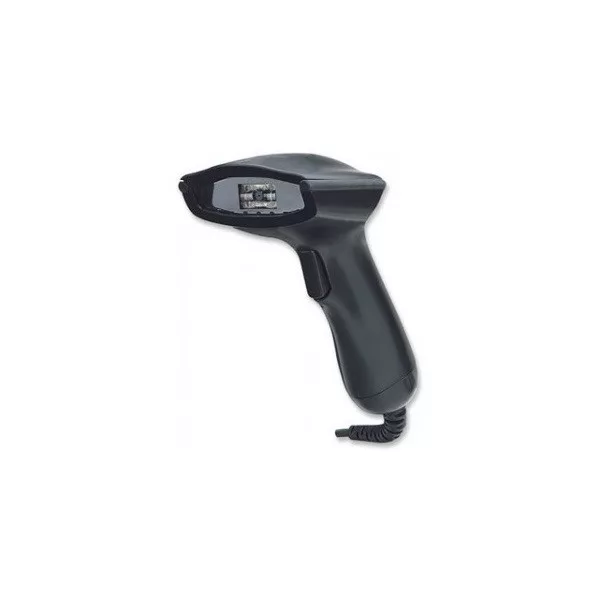

2D Barcode Scanner

430 mm Scan Depth, USB

Model Number: 177603



Standards and Certifications:

FCC

CE

UL

USB

General:

Supports 1D and 2D barcodes

Light source: red laser 650 nm

Scanner range: 430 mm

Resolution: 752 horizontal x 480 vertical pixels, 256 gray levels

Reading indicator: tone and LED

Ambient light: 100,000 lux maximum (sunlight)

Scan rate: 200 scans/second auto-adaptive in linear mode; 56 images/second auto-adaptive in area mode

Interface: USB

Switch: trigger

Code support:

1D: UPC/EAN, UCC/EAN128, ISBN, ISBT, Code 11, Code 39, Code 93/93i, Code 128, Interleaved, Matrix, Industrial, Standard 2 of 5, Codabar, MSI, Plessey, Telepen, Postal codes, GS1 DataBar

2D: Data Matrix, PDF 417, Micro PDF 417, Maxicode, QR code, Aztec, EAN.UCC composite

Physical:

Dimensions: 19.3 x 9 x 7.2 cm (7.5 x 3.5 x 2.8 in.)

Weight: 135 g (4.76 oz.)

Cable length: 1.5 m (5 ft.)

Operating temperature: 0 – 50°C

Storage temperature: -20 – 70°C

Relative humidity: 20 – 95% (non-condensing)

Housing: ABS

Electrical:

Voltage: DC +5 V +/- 5%

Power consumption: 435 mA (in operation)

Package Contents:

2D Barcode Scanner

User manual
