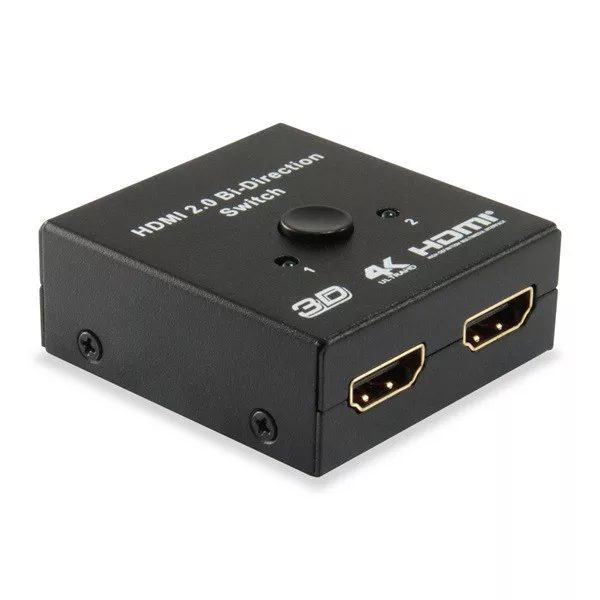

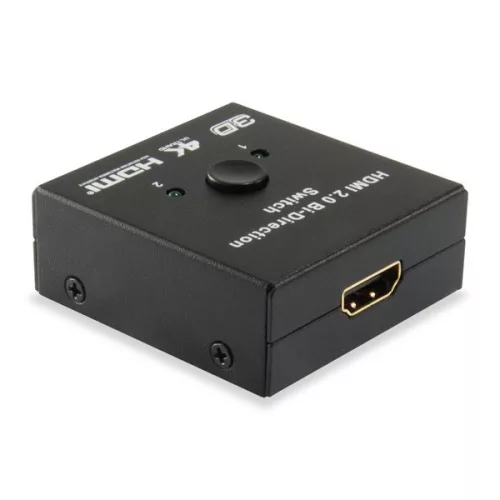

332723 HDMI Bi-Direction Switch

Model Number

332723

SKU

332723

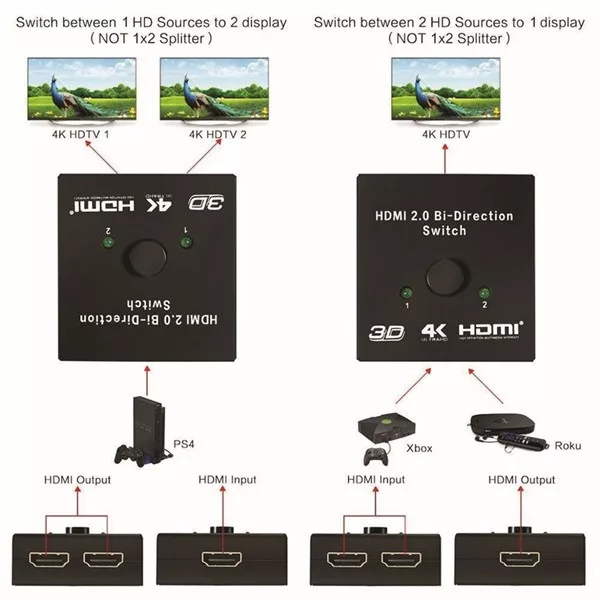

• Option.1: Connect two HDMI sources to one HDMI display
• Option.2: Connect one HDMI source to toggle between two displays (only one monitor will display at a time)
• HDMI 2.0 compatible
• Supports video resolutions up to 4K/60Hz
• Supports HDCP2.2
• Support HDR10/Dolby Vision 4K@60Hz 4:4:4
• Compatible with  a bandwidth of 6Gbps / 600MHz per channel (18Gbps Total)
• Supports Dolby TrueHD and DTS-HD Master Audio
• Supports 3D format video transmission
• Material: Aluminum

The equip HDMI Bi-directional Switcher/Splitter is very versatile as it can be used as either a 2 port switch or a 2 port splitter/selector. This means you have the option of using this with one host device (ie: Bluray Player, PS3, etc.) and have the signal sent to two displays (TV, Monitor, Projector, etc.), and then simply use the selector button to switch the signal back and forth between the displays.
